WDH-8ET1GT1GF-POE 10/100Mbps 10-Port PoE Industrial Ethernet Switches (UL Listed, Fanless, -30 to 75°C)

$99.98 $158.98

Product Overview

The WIWAV® WDH-8ET1GT1GF-POE series up to 10 Ports (8 Ports PoE support) Ethernet devices through a rugged, energy-efficient, industrial 10/100Mbps(8 Ports 10/100Mbps PoE + 1 Port 1000Mbps +1 Port SFP) Ethernet switch for critical applications in hazardous environments, such as smart traffic, factory automation, and outdoor access connection for video surveillance / FTTx and Wi-Fi coverage.

Features and Benefits

The WDH Series Switches are designed for low cost, small sizes. They offer:

●   Scalability: Compact 10-port (8 Ports PoE support) Ethernet switch with automatic MDI/MDI-X crossover for plug-and-play

●   Easy integration: Expand your network connectivity with this rugged unmanaged network switch, Easy monitor and diagnostic by LED indicator

●   Fast data transmission: Supports both 10/100 or 1000Mbps speed auto negotiation, Supports IEEE 802.3, 802.3u, 802.3x standard

●   Robust and reliable: Can be used in extreme industrial environments; Supports a wide range of operating temperatures -30°C ~ +75°C (-22℉ ~ 167℉)

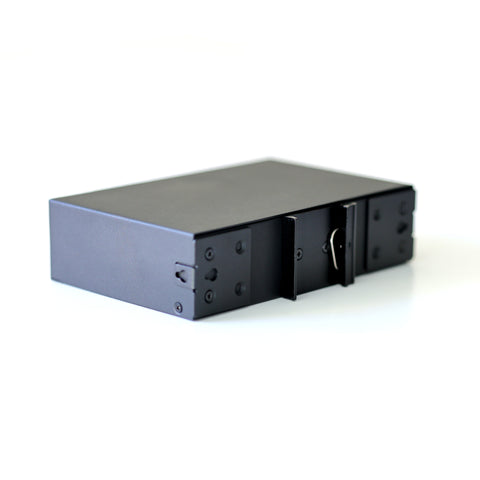

●   Easy to use: With an attachedmetal bracket for DIN rail or other ways mounting on equipment racks and cabinets.

●   Low power consumption: Energy-Efficient Ethernet, 48V DC terminal block input

Table : Product Specifications
General Technical Data
WDH-8ET1GT1GF-POE 8 x 10M/100M BASE-T(PoE support) Ethernet Port(RJ45) +1 x 1000M BASE-T + 1 x 1000M SFP connectors
Technology
Standards 4K Packet Forwarding Rate 4.166Mpps
Packet Buffer 4M Switching Capacities 5.6Gbps
Safety Certifications & Compliance Specifications

Environmental Regulation

 RoHS / REACH(SVHC) QMS ISO9001

Compliance Marking

 UL / cUL / IEC EN 62368-1 / FCC (North America) / CE (Europe) / PSE (Japan)

EMI and EMC Compliance
Reliability Testing

 FCC 47 CFR Part 15, Subpart B | EMC Directive 2014/30/EU
EN 61000-4-2 ESD Level 4 (±8kV Contact Discharge ±15kV Air Discharge), EN 61000-4- 3 RS Level 4 (30V/m 1kHz), EN 61000-4-4 EFT Level 4 (4kV 2kV), EN 61000-4-5 Surge Level 4 (4kV Line to Ground), EN 61000-4-6 CS Level 3 (10Vrms 1kHz), EN 61000-4-8 PFMF Level 4 (30A/m) | Mechanical Shock Test / IEC 60068-2-27:2008, Sinusoidal Vibration Test / IEC 60068-2-6:2007, Free Fall / IEC 60068-2-31:2008
Power
Max. Power Consumption <125w No-load power Consumption <4w
Environmental
Operating Temperature -22℉~167℉(-30℃~75℃) Storage Temperature -49℉~185℉(-45℃~85℃)
Humidity 5%-95%(noncondensing) MTBF 357,000 hours
Mechanical
Housing Metal & fanless Protection Class IP30
Weight 0.65kg Mounting Din-Rail / Wall Mount / Flat / Hang
Dimensions W: 41mm x H: 157mm x D: 102mm (Not including DIN rail and accessories)
