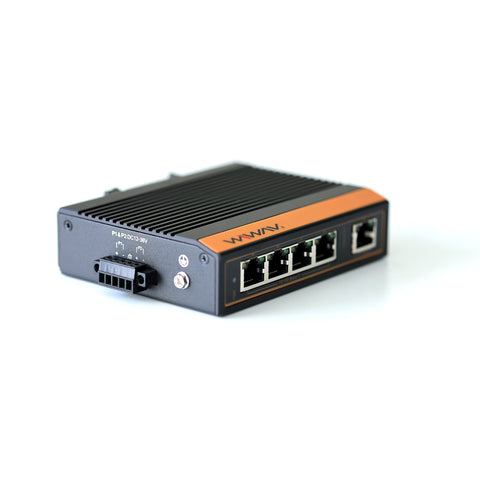

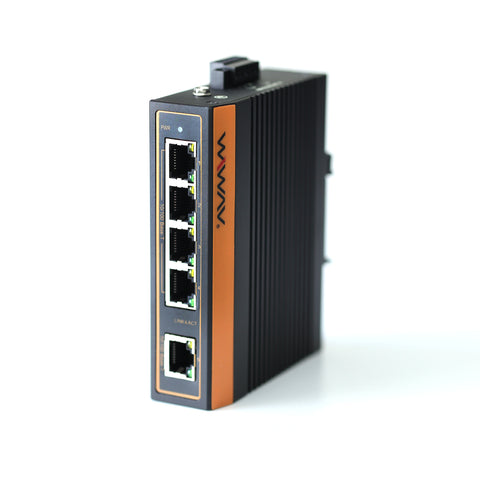

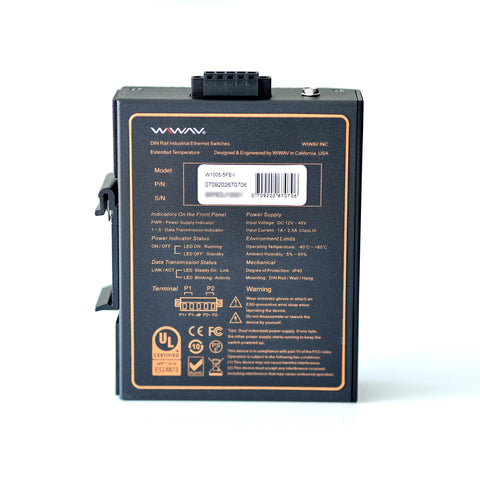

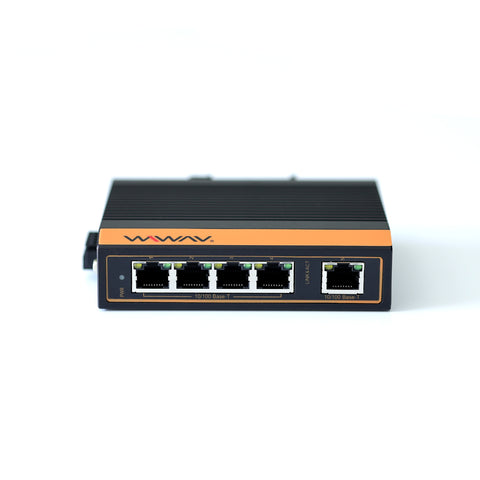

W1005-5FE-I 10/100Mbps 5-Port Industrial Ethernet Switches (UL Listed, IP40, -40~85°C)
$88.98 $99.98Product Overview
The WIWAV® W1005-5FE-I series up to 5 Ports Ethernet devices through a rugged, energy-efficient, industrial 10/100Mbps Ethernet switch for critical applications in hazardous environments, such as smart traffic, factory automation, and outdoor access connection for video surveillance / FTTx and Wi-Fi coverage.
Features and Benefits
The I Series Switches are designed for low cost, low ports, and small sizes. They offer:
● Scalability: Compact 5-port Ethernet switch with automatic MDI/MDI-X crossover for plug-and-play
● Easy integration: Expand your network connectivity with this rugged unmanaged network switch, Easy monitor and diagnostic by LED indicator
● Fast data transmission: Each port supports both 10/100Mbps speed auto negotiation, Supports IEEE 802.3, 802.3u, 802.3x standard
● Robust and reliable: Can be used in extreme industrial environments; Supports a wide range of operating temperatures -40°C ~ +85°C

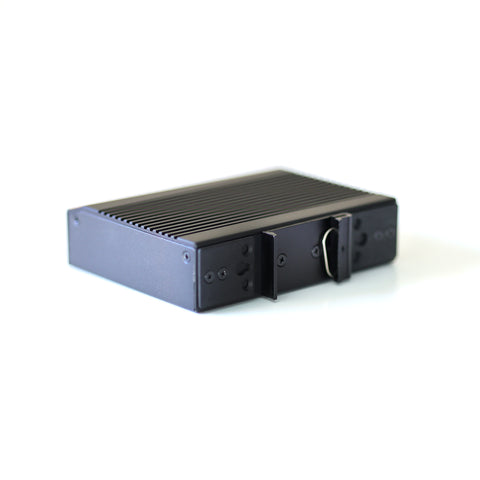

● Easy to use: DIN rail or other ways mounting on equipment racks and cabinets.
● Low power consumption: Energy-Efficient Ethernet（Power Consumption <1 watts）, Wide range 12/24/36/48V DC terminal block input.
| General Technical Data | |||
|---|---|---|---|
| W1005-5FE-I | 5 x 10M/100M BASE-T Ethernet Port(RJ45) connectors | ||
| Technology | |||
| Standards | 2K | Packet Forwarding Rate | 0.74Mpps |
| Packet Buffer | 2M | Switching Capacities | 1Gbps |
| Safety Certifications & Compliance Specifications | |||
|
Environmental Regulation |
RoHS / REACH(SVHC) | QMS | ISO9001 |
|
Compliance Marking |
UL / cUL / IEC EN 62368-1 / FCC (North America) / CE (Europe) / PSE (Japan) | ||
|
EMI and EMC Compliance |
FCC 47 CFR Part 15, Subpart B | EMC Directive 2014/30/EU EN 61000-4-2 ESD Level 4 (±8kV Contact Discharge ±15kV Air Discharge), EN 61000-4- 3 RS Level 4 (30V/m 1kHz), EN 61000-4-4 EFT Level 4 (4kV 2kV), EN 61000-4-5 Surge Level 4 (4kV Line to Ground), EN 61000-4-6 CS Level 3 (10Vrms 1kHz), EN 61000-4-8 PFMF Level 4 (30A/m) | Mechanical Shock Test / IEC 60068-2-27:2008, Sinusoidal Vibration Test / IEC 60068-2-6:2007, Free Fall / IEC 60068-2-31:2008 |
||
| Power | |||
| Max. Power Consumption | <1w | No-load power Consumption |
<0.5w |
| Environmental | |||
| Operating Temperature | -40℃~85℃ | Storage Temperature | -45℃~85℃ |
| Humidity | 5%-95%(noncondensing) | MTBF | 357,000 hours |
| Mechanical | |||
| Housing | Metal & fanless | Protection Class | IP40 |
| Weight | 0.4kg | Mounting | Din-Rail / Wall / Hang |
| Dimensions | W: 30mm x H: 115mm x D: 90mm (Not including DIN rail and accessories) | ||
