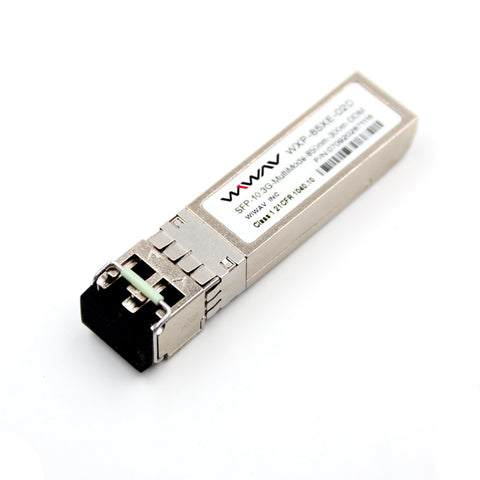

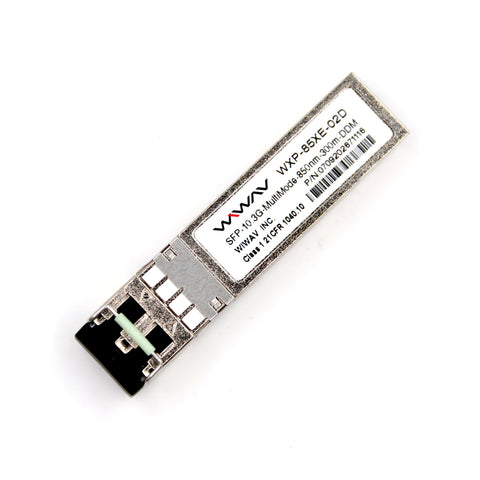

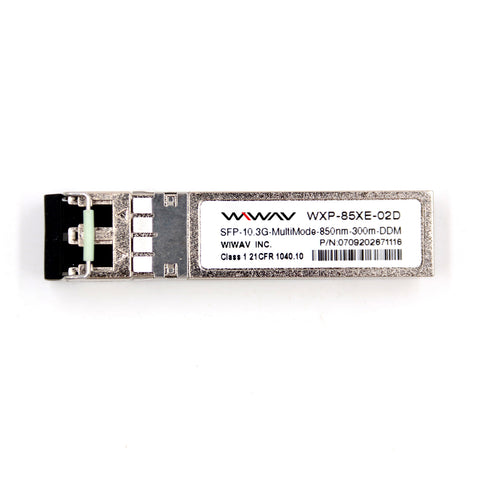

WXP-85XE-02D 10Gb/s 850nm/300M/DDM Multi-mode SFP+ Optical Module Transceiver

Product Features

• Up to 11.1Gbps Data Links
• Up to 300m transmission on MMF
• Power dissipation < 1W
• VSCEL laser and PIN receiver
• Metal enclosure, for lower EMI
• 2-wire interface with integrated Digital Diagnostic monitoring
• Hot-pluggable SFP+ footprint
• Specifications compliant with SFF 8472
• Compliant with SFP+ MSA with LC connector
• Single 3.3V power supply
• Case operating temperature range: 0°C to 70°C

Applications

10GBASE-SR/SW & 10G Ethernet

Standard

• Compliant to SFP+ SFF-8431
• Compliant to 802.3ae 10GBASE-SR.
• RoHS Compliant.

Absolute Maximum Ratings

Recommended Operating Conditions

Optical Characteristics

Transmitter

Receiver

Notes:
• Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.
• Measured with a PRBS 2³¹−1 test pattern, @10.325Gb/s, BER < 10⁻¹².

Electrical Characteristics

Transmitter

Receiver

Notes:
1) Connected directly to TX data input pins. AC coupled thereafter.
2) Or open circuit.
3) Into 100 ohms differential termination.
4) These are unfiltered 20–80% values
5) Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
6) Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.

Pin Descriptions

Notes:
• Circuit ground is internally isolated from chassis ground.
• TFAULT is an open collector/drain output, which should be pulled up with a 4.7kΩ–10 kΩ resistor on the host board if intended for use. Pull up voltage should be between 2.0V to Vcc + 0.3V. A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm thresholds. A low output indicates normal operation. In the low state, the output is pulled to <0.8V.
• Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.
• Should be pulled up with 4.7kΩ–10kΩ on host board to a voltage between 2.0V and 3.6V. MOD_ABS pulls line low to indicate module is plugged in.
• Internally pulled down per SFF-8431 Rev 4.1.
• LOS is open collector output. It should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

Digital Diagnostic Functions

WIWAV WXP-85XE-02D transceivers support the 2-wire serial communication protocol as defined in the SFP+ MSA.

The standard SFP serial ID provides access to identification information that describes the transceiver’s capabilities, standard interfaces, manufacturer, and other information.

Additionally, WIWAV SFP+ transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.

The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.

The operating and diagnostics information is monitored and reported by a Digital Diagnostics Transceiver Controller (DDTC) inside the transceiver, which is accessed through a 2-wire serial interface. When the serial protocol is activated, the serial clock signal (SCL, Mod Def 1) is generated by the host. The positive edge clocks data into the SFP transceiver into those segments of the E2PROM that are not write-protected. The negative edge clocks data from the SFP transceiver. The serial data signal (SDA, Mod Def 2) is bi-directional for serial data transfer. The host uses SDA in conjunction with SCL to mark the start and end of serial protocol activation. The memories are organized as a series of 8-bit data words that can be addressed individually or sequentially.

Host - Transceiver Interface Block Diagram

Outline Dimensions

Comply to SFF-8432 rev5.0, the improved Pluggable form factor specification.

Regulatory Compliance
