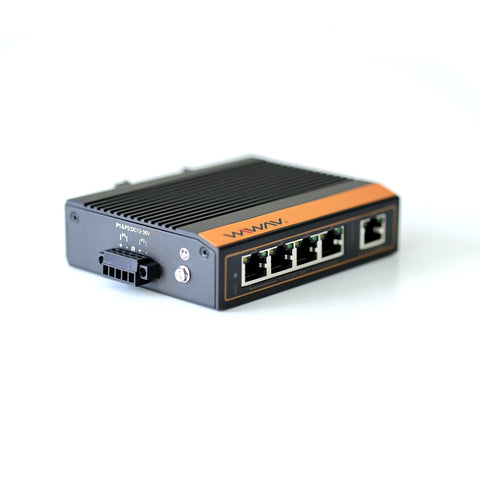

W1105-5GE-I 10/100/1000Mbps 5-Port Gigabit Industrial Ethernet Switches (UL Listed, IP40, -40 to 85°C)

$128.98 $189.98

Product Overview

The WIWAV® W1105-5GE-I series up to 5 Ports Gigabit Ethernet devices through a rugged, energy-efficient, industrial 10/100/1000Mbps Ethernet switch for critical applications in hazardous environments, such as smart traffic, factory automation, and outdoor access connection for video surveillance / FTTx and Wi-Fi coverage.

Features and Benefits

The I Series Switches are designed for low cost, low ports, and small sizes. They offer:

●   Scalability: Compact 5-port Ethernet switch with automatic MDI/MDI-X crossover for plug-and-play

●   Easy integration: Expand your network connectivity with this rugged unmanaged network switch, Easy monitor and diagnostic by LED indicator

●   Fast data transmission: Each port supports both 10/100/1000Mbps speed auto negotiation, Supports IEEE 802.3, 802.3u, 802.3x standard

●   Robust and reliable: Can be used in extreme industrial environments; Supports a wide range of operating temperatures -40°C ~ +85°C (-40℉ ~ 185℉)

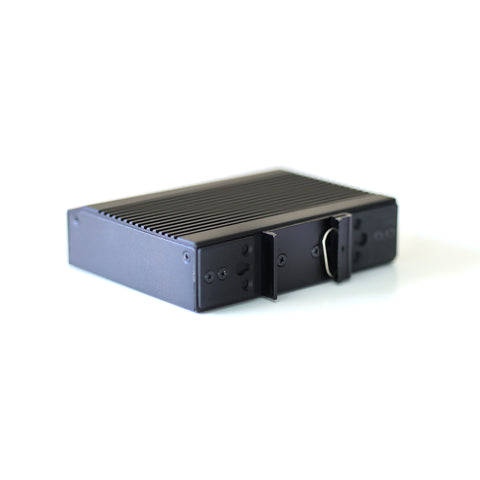

●   Easy to use: With an attachedmetal bracket for DIN rail or other ways mounting on equipment racks and cabinets.

●   Low power consumption: Energy-Efficient Ethernet(Power Consumption <4watts), Wide range 12/24/36/48V DC terminal block input

Table Product Specifications
General Technical Data
W1105-5GE-I 5 x 10M/100/1000M BASE-T Ethernet Port(RJ45) connectors
Standards 2K Packet Forwarding Rate 7.44Mpps
Packet Buffer 2M Switching Capacities 10Gbps
Safety Certifications & Compliance Specifications

Environmental Regulation


Compliance Marking

UL / cUL / IEC EN 62368-1 / FCC (North America) / CE (Europe) / PSE (Japan)

EMI and EMC Compliance
Reliability Testing

FCC 47 CFR Part 15, Subpart B | EMC Directive 2014/30/EU
EN 61000-4-2 ESD Level 4 (±8kV Contact Discharge ±15kV Air Discharge), EN 61000-4- 3 RS Level 4 (30V/m 1kHz), EN 61000-4-4 EFT Level 4 (4kV 2kV), EN 61000-4-5 Surge Level 4 (4kV Line to Ground), EN 61000-4-6 CS Level 3 (10Vrms 1kHz), EN 61000-4-8 PFMF Level 4 (30A/m) | Mechanical Shock Test / IEC 60068-2-27:2008, Sinusoidal Vibration Test / IEC 60068-2-6:2007, Free Fall / IEC 60068-2-31:2008
Max. Power Consumption <4w No-load power Consumption <1w
Operating Temperature -40℉~185℉(-40℃~85℃) Storage Temperature -49℉~185℉(-45℃~85℃)
Humidity 5%-95%(noncondensing) MTBF 357,000 hours
Housing Metal & fanless Protection Class IP40
Weight 0.4kg Mounting Din-Rail / Wall / Hang
Dimensions W: 30mm x H: 115mm x D: 90mm (Not including DIN rail and accessories)
