W1003-2FE1FX-I 10/100Mbps 3-Port Industrial Ethernet Media Converter (UL Listed, Pack of 2, IP40, -40~85℃)
$199.98
$299.98
Pickup currently unavailable
Product Overview
W1003-2FE1FX-I series up to 3-Port Ethernet devices through a rugged, energy-efficient, industrial 10/100Mbps Ethernet Media Converter for critical applications in hazardous environments, such as smart traffic, factory automation, and outdoor access connection for video surveillance / FTTx and Wi-Fi coverage.
Features and Benefits
The WDH Series Switches are designed for MINI Size, low cost, and Robust and reliable. They offer:
● Compact 3-port Ethernet switch (2 Ports Base-T + 1 Ports up to 20km SC Fiber) with automatic MDI/MDI-X crossover for plug-and-play
● Expand your network connectivity with this rugged unmanaged network switch, Easy monitor and diagnostic by LED indicator
● FAST DATA TRANSMISSION: Each port supports both 10/100Mbps speed auto negotiation, Supports IEEE 802.3, 802.3u, 802.3x standard
● ROBUST AND RELIABLE - can be used in extreme industrial environments; Supports a wide range of operating temperatures -40°C ~ +85°C (-40F ~ 185F)
● Easy to use and DIN rail mountable with built-in bracket
● Robust IP40-rated housing, Easy deployment and fast boot up time
● LOW POWER CONSUMPTION - Energy-Efficient Ethernet（Power Consumption <2 watts）, 12~48V DC terminal block input

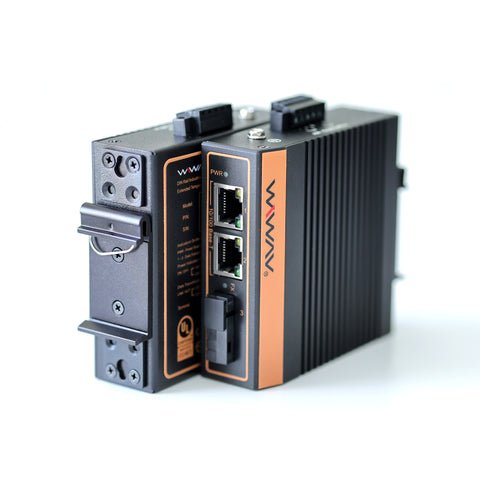

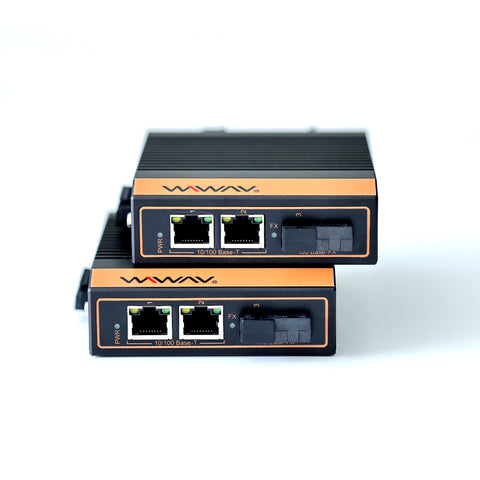

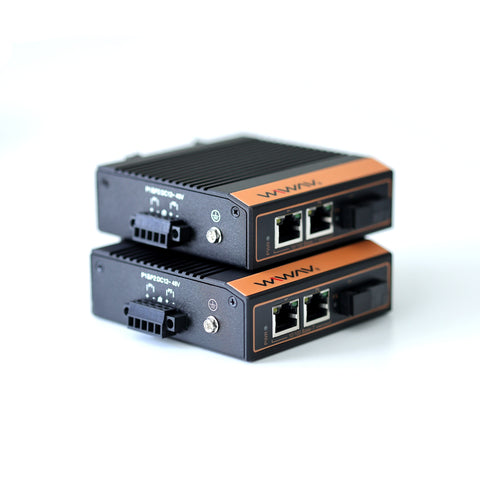

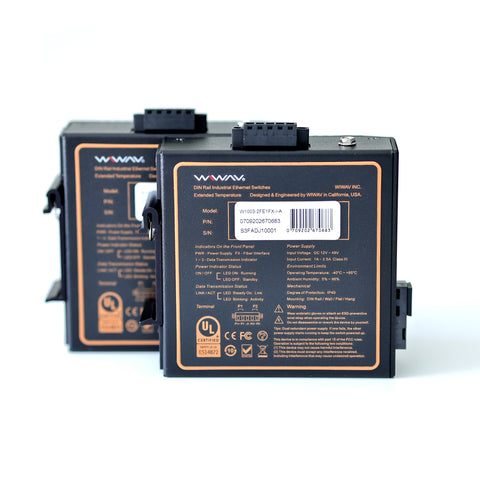

Figure: Overview of the device elements
Table: Product Specifications
| General Technical Data | |||
|---|---|---|---|
| W1003-2FE1FX-I | 2 x 10M/100M BASE-T Ethernet Port(RJ45) connectors + 1 x 10M/100M Bi-Directional SingleMode SC Fiber, RJ45 to SC, 20km | ||
| Technology | |||
| Standards | 1K | Packet Forwarding Rate | 0.4464Mpps |
| Packet Buffer | 448K | Switching Capacities | 600Mbps |
| Safety Certifications & Compliance Specifications | |||
| Environmental Regulation | RoHS / REACH(SVHC) | QMS | ISO9001 |
| Compliance Marking | UL / cUL / IEC EN 62368-1 / FCC (North America) / CE (Europe) / PSE (Japan) | ||
| EMI and EMC Compliance Reliability Testing |
FCC 47 CFR Part 15, Subpart B | EMC Directive 2014/30/EU EN 61000-4-2 ESD Level 4 (±8kV Contact Discharge ±15kV Air Discharge), EN 61000-4- 3 RS Level 4 (30V/m 1kHz), EN 61000-4-4 EFT Level 4 (4kV 2kV), EN 61000-4-5 Surge Level 4 (4kV Line to Ground), EN 61000-4-6 CS Level 3 (10Vrms 1kHz), EN 61000-4-8 PFMF Level 4 (30A/m) | Mechanical Shock Test / IEC 60068-2-27:2008, Sinusoidal Vibration Test / IEC 60068-2-6:2007, Free Fall / IEC 60068-2-31:2008 |
||
| Power | |||
| Max. Power Consumption | <2w | No-load power Consumption |
<1w |
| Environmental | |||
| Operating Temperature | -40℉~185℉(-40℃~85℃) | Storage Temperature | -49℉~185℉(-45℃~85℃) |
| Humidity | 5%-95%(noncondensing) | MTBF | 357,000 hours |
| Mechanical | |||
| Housing | Metal & fanless | Protection Class | IP40 |
| Weight | 0.35kg | Mounting | Din-Rail/Wall/Hang |
| Dimensions | W: 30mm x H: 90mm x D: 90mm (Not including DIN rail and accessories) | ||
