The WIWAV® WDH-8ET1GT1GF-POE series up to 10 Ports (8 Ports PoE support) Ethernet devices through a rugged, energy-efficient, industrial 10/100Mbps(8 Ports 10/100Mbps PoE + 1 Port 1000Mbps +1 Port SFP) Ethernet switch for critical applications in hazardous environments, such as smart traffic, factory automation, and outdoor access connection for video surveillance / FTTx and Wi-Fi coverage.
Features and Benefits
The WDH Series Switches are designed for low cost, small sizes. They offer:
● Scalability: Compact 10-port (8 Ports PoE support) Ethernet switch with automatic MDI/MDI-X crossover for plug-and-play
● Easy integration: Expand your network connectivity with this rugged unmanaged network switch, Easy monitor and diagnostic by LED indicator
● Fast data transmission: Supports both 10/100 or 1000Mbps speed auto negotiation, Supports IEEE 802.3, 802.3u, 802.3x standard
● Robust and reliable: Can be used in extreme industrial environments; Supports a wide range of operating temperatures -30°C ~ +75°C (-22℉ ~ 167℉)

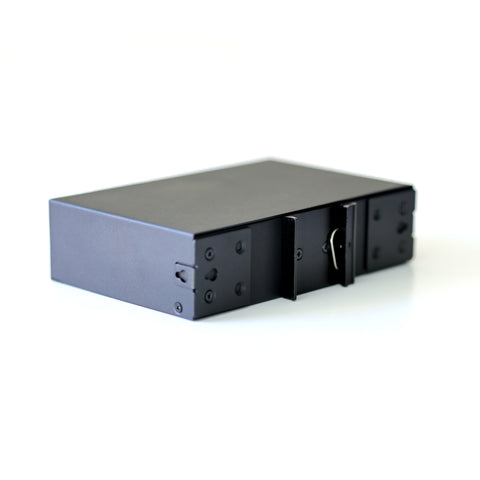

● Easy to use: With an attachedmetal bracket for DIN rail or other ways mounting on equipment racks and cabinets.
● Low power consumption: Energy-Efficient Ethernet（Power Consumption <6 watts）, 48V DC terminal block input
