WDH-5GT-DC 10/100/1000Mbps Gigabit 5-Port Industrial Ethernet Switches (UL Listed,Fanless,-30~75℃)

$62.98 $89.98

Product Overview

The WIWAV® WDH-5GT-DC series up to 5 port Ethernet devices through a rugged, energy-efficient, industrial 10/100/1000Mbps Ethernet switch for critical applications in hazardous environments, such as smart traffic, factory automation, and outdoor access connection for video surveillance / FTTx and Wi-Fi coverage.

Features and Benefits

The WDH Series Switches are designed for low cost, low ports, and mini sizes. They offer:

●   Mini Size: Compact 5-port Ethernet switch with automatic MDI/MDI-X crossover for plug-and-play

●   Easy integration: Expand your network connectivity with this rugged unmanaged network switch, Easy monitor and diagnostic by LED indicator

●   Fast data transmission: Each port supports both 10/100/1000Mbps speed auto negotiation, Supports IEEE 802.3, 802.3u, 802.3x standard

●   Robust and reliable: Can be used in extreme industrial environments; Supports a wide range of operating temperatures -30°C ~ +75°C (-22F ~ 167F)

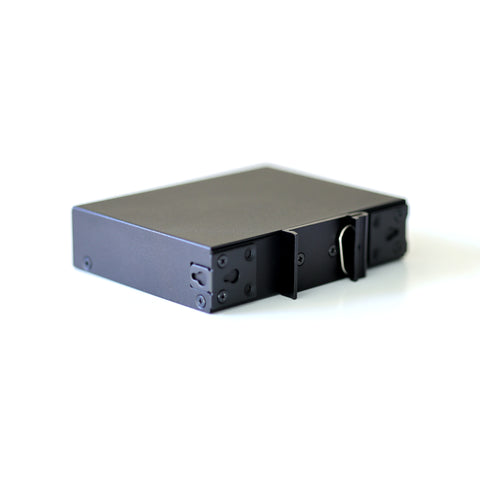

●   Easy to use: With an attached "L" shaped metal bracket for DIN rail or other ways mounting on equipment racks and cabinets.

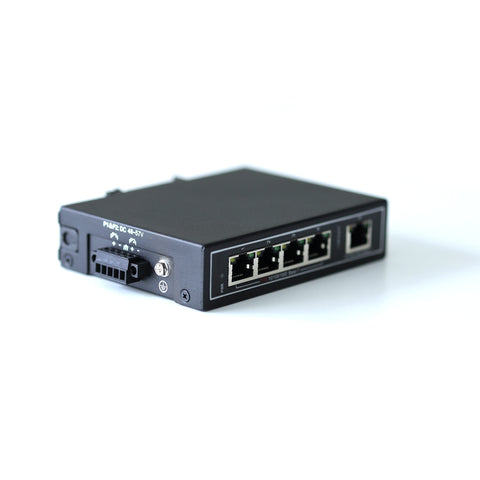

●   Low power consumption: Energy-Efficient Ethernet（Power Consumption <4 watts）, Wide range 12/24/36/48V DC terminal block input

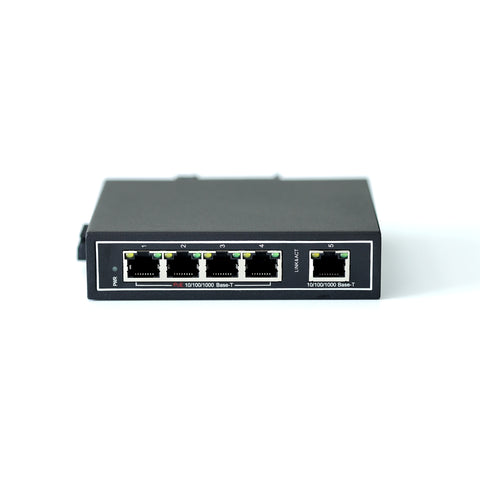

Figure: Overview of the device elements


Table: Product Specifications

General Technical Data
WDH-5GT-DC 5 x 10M/100/1000M BASE-T Ethernet Port(RJ45) connectors
Technology
Standards 2K Packet Forwarding Rate 7.44Mpps
Packet Buffer 1M Switching Capacities 10Gbps
Safety Certifications & Compliance Specifications

Environmental Regulation

 RoHS / REACH(SVHC) QMS ISO9001

Compliance Marking

 UL / cUL / IEC EN 62368-1 / FCC (North America) / CE (Europe) / PSE (Japan)

EMI and EMC Compliance
Reliability Testing

 FCC 47 CFR Part 15, Subpart B | EMC Directive 2014/30/EU
EN 61000-4-2 ESD Level 4 (±8kV Contact Discharge ±15kV Air Discharge), EN 61000-4- 3 RS Level 4 (30V/m 1kHz), EN 61000-4-4 EFT Level 4 (4kV 2kV), EN 61000-4-5 Surge Level 4 (4kV Line to Ground), EN 61000-4-6 CS Level 3 (10Vrms 1kHz), EN 61000-4-8 PFMF Level 4 (30A/m) | Mechanical Shock Test / IEC 60068-2-27:2008, Sinusoidal Vibration Test / IEC 60068-2-6:2007, Free Fall / IEC 60068-2-31:2008
Power
Max. Power Consumption <4w No-load power Consumption <1w
Environmental
Operating Temperature -22℉~167℉(-30℃~75℃) Storage Temperature -49℉~185℉(-45℃~85℃)
Humidity 5%-95%(noncondensing) MTBF 357,000 hours
Mechanical
Housing Metal & fanless Protection Class IP30
Weight 0.35kg Mounting Din-Rail/Wall/Flat/Hang
Dimensions W: 28mm x H: 118mm x D: 89mm (Not including DIN rail and accessories)
