WDH-2ET1FX-DC 10/100Mbps 3-Port Industrial Ethernet Media Converter (UL Listed,Pack of 2,Fanless,-30~75℃)

$71.98 $99.98

Product Overview

WDH-2ET1FX-DC series up to 3-Port Ethernet devices through a rugged, energy-efficient, industrial 10/100Mbps Ethernet Media Converter for critical applications in hazardous environments, such as smart traffic, factory automation, and outdoor access connection for video surveillance / FTTx and Wi-Fi coverage.

Features and Benefits

The WDH Series Switches are designed for MINI Size, low cost, and Robust and reliable. They offer:

● Compact 3-port Ethernet switch (2 Ports Base-T + 1 Ports up to 20km SC Fiber) with automatic MDI/MDI-X crossover for plug-and-play

● Expand your network connectivity with this rugged unmanaged network switch, Easy monitor and diagnostic by LED indicator

FAST DATA TRANSMISSION: Each port supports both 10/100Mbps speed auto negotiation, Supports IEEE 802.3, 802.3u, 802.3x standard

ROBUST AND RELIABLE - can be used in extreme industrial environments; Supports a wide range of operating temperatures -30°C ~ +75°C (-22F ~ 167F)

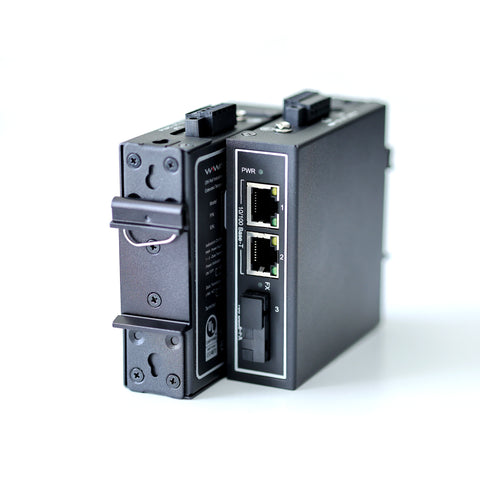

● Easy to use and DIN rail mountable with built-in bracket

● Robust IP30-rated housing, Easy deployment and fast boot up time

LOW POWER CONSUMPTION - Energy-Efficient Ethernet(Power Consumption <2 watts), 12~48V DC terminal block input

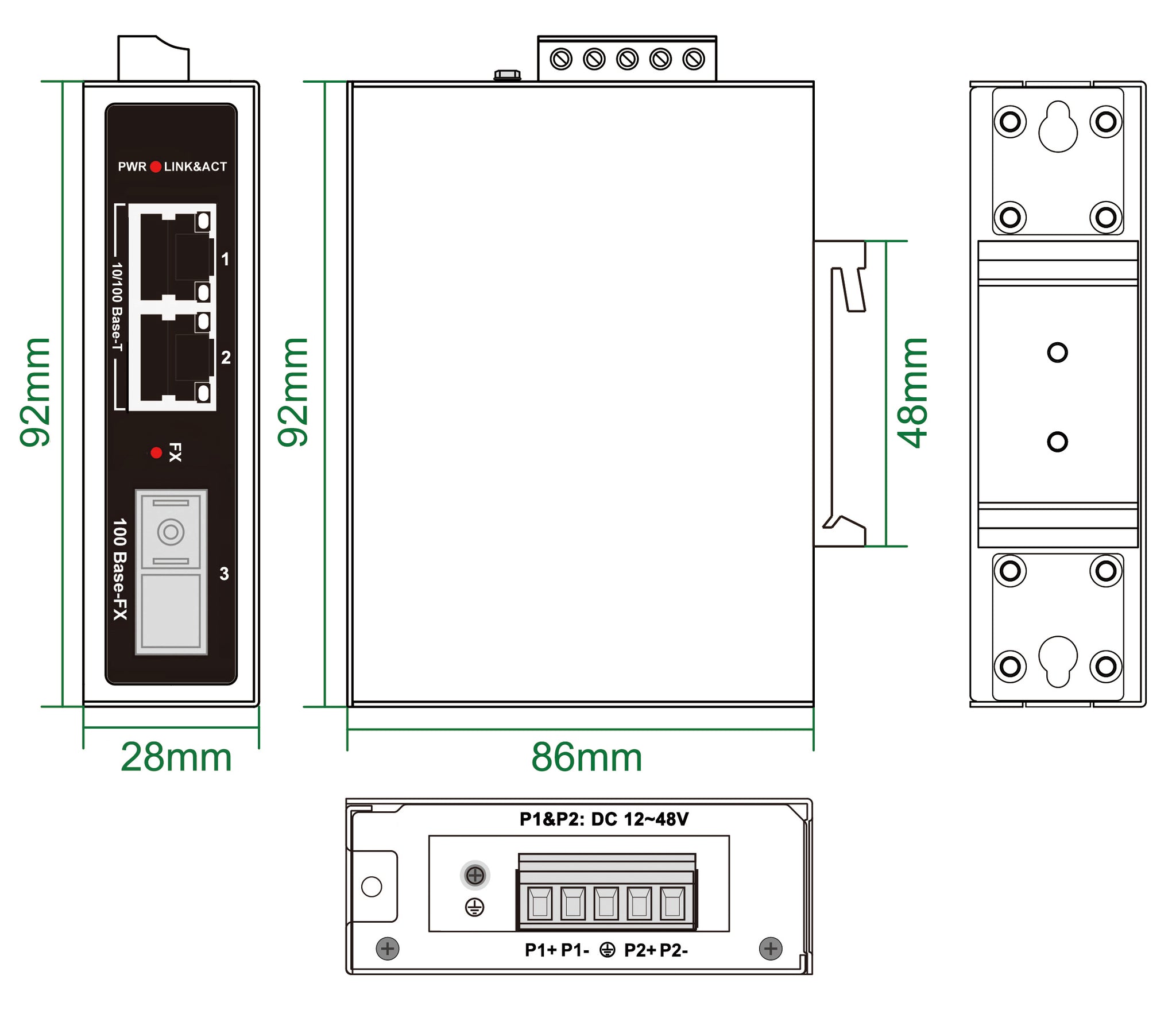

Figure: Overview of the device elements


Table: Product Specifications

General Technical Data
WDH-2ET1FX-DC 2 x 10M/100M BASE-T Ethernet Port(RJ45) connectors + 1 x 10M/100M Bi-Directional SingleMode SC Fiber, RJ45 to SC, 20km
Technology
Standards 1K Packet Forwarding Rate 0.4464Mpps
Packet Buffer 448K Switching Capacities 600Mbps
Safety Certifications & Compliance Specifications

Environmental Regulation

RoHS / REACH(SVHC) QMS ISO9001

Compliance Marking

UL / cUL / IEC EN 62368-1 / FCC (North America) / CE (Europe) / PSE (Japan)

EMI and EMC Compliance
Reliability Testing

FCC 47 CFR Part 15, Subpart B | EMC Directive 2014/30/EU
EN 61000-4-2 ESD Level 4 (±8kV Contact Discharge ±15kV Air Discharge), EN 61000-4- 3 RS Level 4 (30V/m 1kHz), EN 61000-4-4 EFT Level 4 (4kV 2kV), EN 61000-4-5 Surge Level 4 (4kV Line to Ground), EN 61000-4-6 CS Level 3 (10Vrms 1kHz), EN 61000-4-8 PFMF Level 4 (30A/m) | Mechanical Shock Test / IEC 60068-2-27:2008, Sinusoidal Vibration Test / IEC 60068-2-6:2007, Free Fall / IEC 60068-2-31:2008
Power
Max. Power Consumption <2w No-load power Consumption <1w
Environmental
Operating Temperature -22℉~167℉(-30℃~75℃) Storage Temperature -49℉~185℉(-45℃~85℃)
Humidity 5%-95%(noncondensing) MTBF 357,000 hours
Mechanical
Housing Metal & fanless Protection Class IP30
Weight 0.3kg Mounting Din-Rail/Wall/Flat/Hang

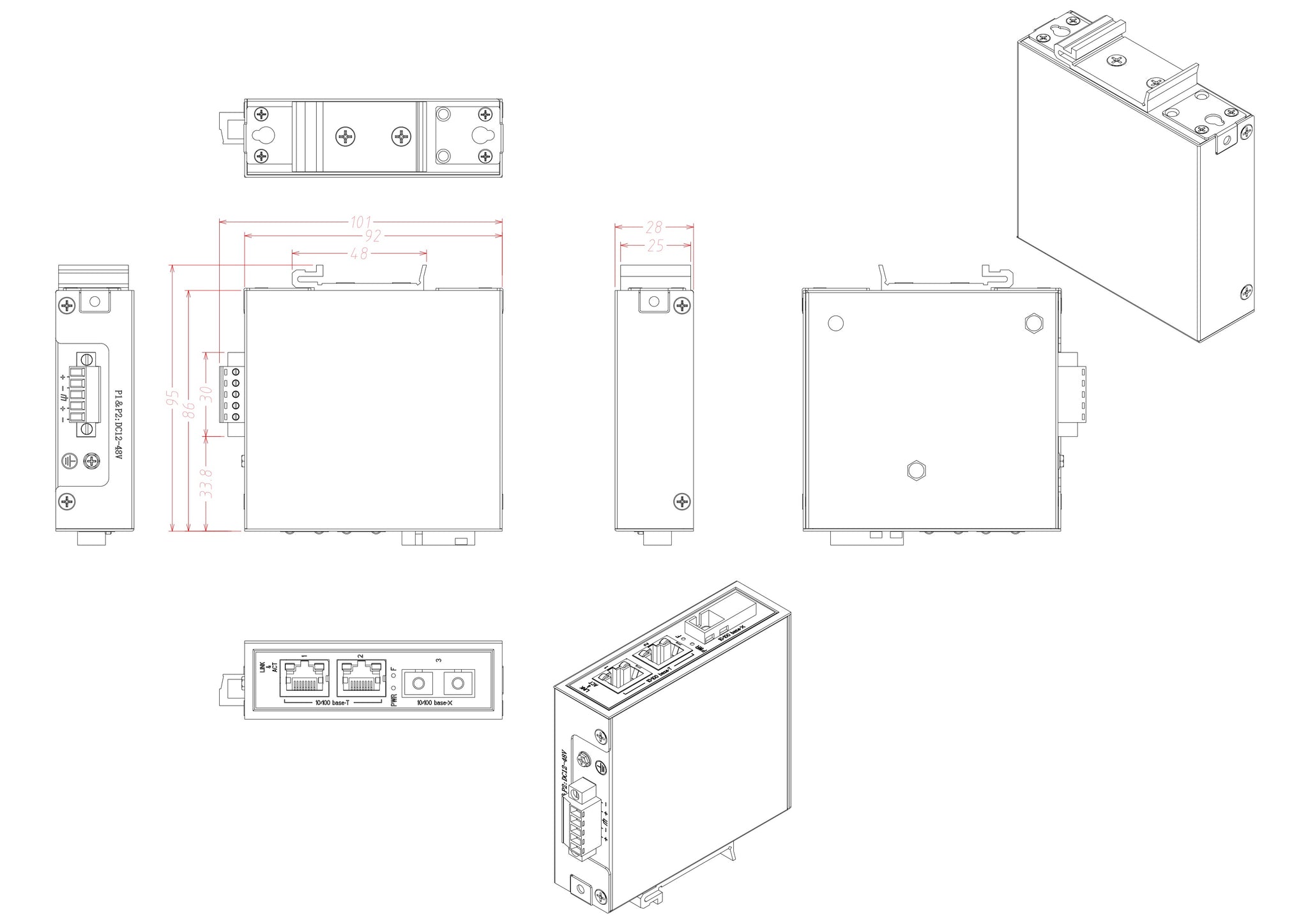

Dimensions W: 28mm x H: 92mm x D: 86mm (Not including DIN rail and accessories)
