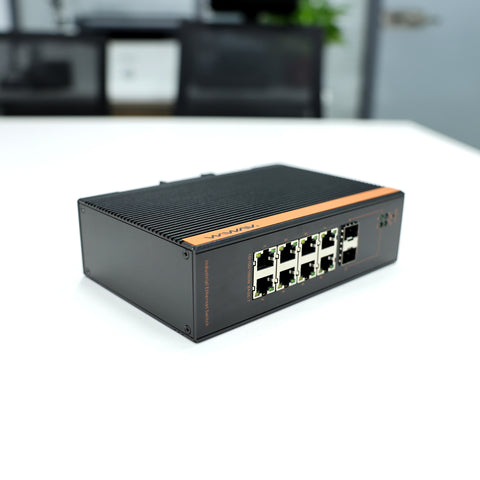

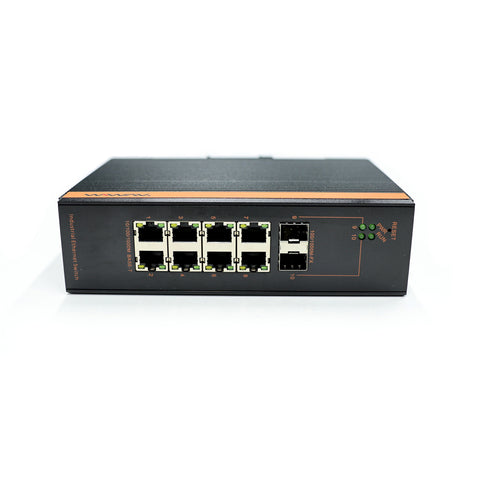

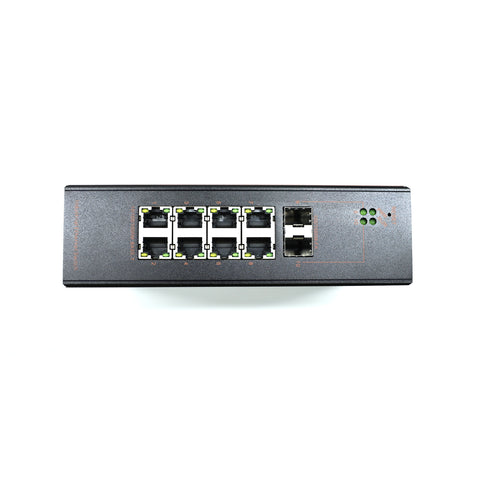

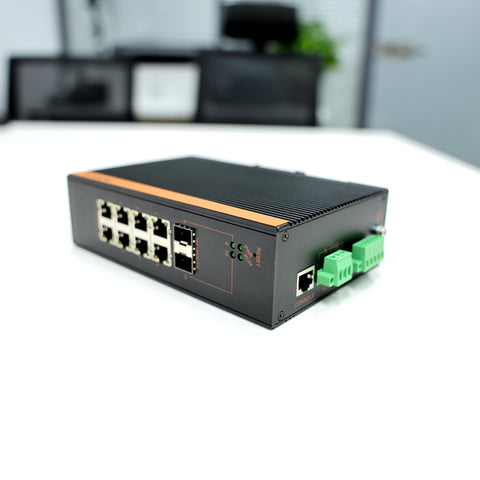

W3110-8GE2GF-I 10/100/1000Mbps 10-Port Managed Gigabit Industrial Ethernet Switches (Fanless, IP40, -40~85℃)

Product Overview

The WIWAV® W3110-8GE2GF-I series up to 10 Port Ethernet devices through a rugged, energy-efficient, industrial 10/100/1000Mbps Ethernet switch for critical applications in hazardous environments, such as smart traffic, factory automation, and outdoor access connection for video surveillance / FTTx and Wi-Fi coverage.

Features and Benefits

WIWAV managed industrial-grade Gigabit Ethernet switches series have IP40 protection aluminum profile all-metal housing, shock-resistant rail mount, extreme ambient temperature adaptability and good EMC electromagnetic compatibility performance to ensure long-term stability, reliability and safe use in harsh environments.All series support M-Ring proprietary ring protection protocol, less than 20ms self-healing time, support VLAN, QINQ, STP/RSTP, multicast, QOS, ACL and other rich Layer 2 switching functions, while providing CLI, Telnet, SSH, Http, Https and other management methods and SNMPv1/v2c/v3-based network management. It has a wide range of application areas, including campus, railroad transportation, electric power, petroleum and petrochemical, banking, water conservancy, metallurgy, public security, civil aviation, etc., and is highly trusted and respected by users.

●   Scalability: Compact 10-port Ethernet switch with automatic MDI/MDI-X crossover

●   Easy integration: Expand your network connectivity with this rugged unmanaged network switch, Easy monitor and diagnostic by LED indicator

●   Fast data transmission: Each port supports both 10/100/1000Mbps speed auto negotiation, Supports IEEE 802.3 10Base-T、 IEEE 802.3u 100Base-TX、 IEEE 802.3ab 1000BASE-T、 IEEE 802.3z 1000Base-X standard

●   Robust and reliable: Can be used in extreme industrial environments; Supports a wide range of operating temperatures -40°C ~ +85°C

●   Easy to use: DIN rail or other ways mounting on equipment racks and cabinets.

●   Low power consumption: Energy-Efficient Ethernet, DC 48V DC terminal block input

Network Management Features

√ Supports cable failure detection, one-key restart and restore factory function.
√ Supports Industrial Ethernet Ring Protocol ERPS, supports private M-RING ring protection protocol, protection switching time can be less than 20ms.
√ Supports port aggregation, linear protection based on G.8031 protocol and ring protection based on G.8032 protocol.
√ Supports Spanning Tree (STP) and Rapid Spanning Tree (RSTP) protocols as well as Multiple Spanning Tree (MSTP) protocol.
√ Supports 802.1Q VLAN, Basic QinQ and Flexible QinQ, and supports up to 4K MSTP protocols.
√ Supports Spanning Tree (STP) and Rapid Spanning Tree (RSTP) protocols, as well as Multiple Spanning Tree (MSTP) protocol.
√ Supports mixed redundant networking of electrical and optical ports.
√ Supports 802.1Q VLAN, Basic QinQ and Flexible QinQ, and supports up to 4K VLAN table entries.
√ Supports rich OAM, including 802.3ah-compliant EFM and 802.1ag and Y.1731-compliant CFM.
√ Supports QOS services based on port, 802.1P, DSCP, MAC address, VLAN ID, Ethernet Type, and so on.
√ Supports 256 ACL access control rules.
√ Supports port, VLAN and port+VLAN based speed limiting.
√ Supports RMON to effectively improve network monitoring and prediction.
√ Supports network security functions such as RADIUS, TACACS+, IEEE802.1X, HTTPS and SSH.
√ Supports fiber breakage alarms; Supports Dying Gasp power down of the remote device Alarm.
√ Supports relay output alarm function √ Supports port loopback detection.
√ Supports online upgrade of equipment and upload and download of equipment configuration.

Product Specifications
